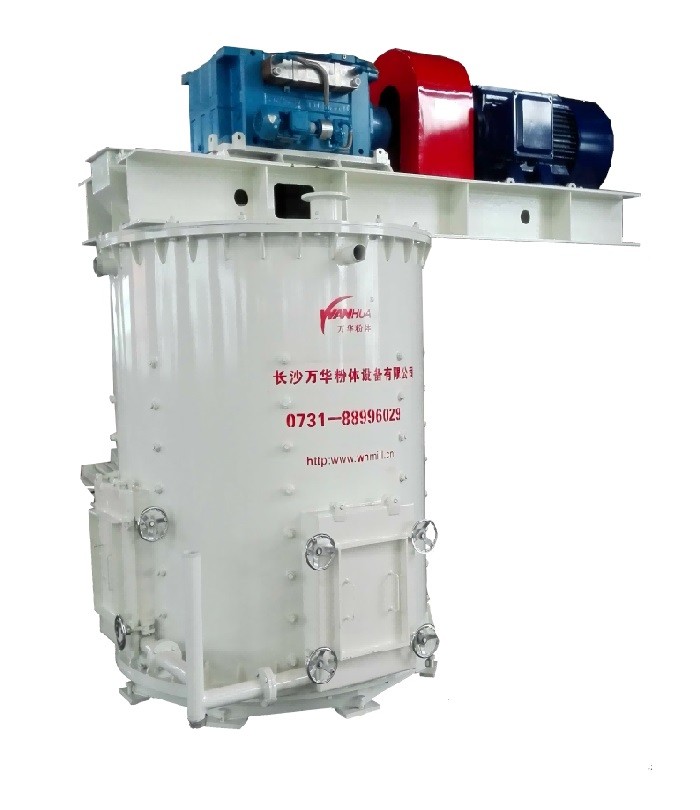

LXJM3000

Product Item : WH-004
Category： Large Ultra-fine Stirred Mill
Machine Size: 3600mm(L)×3600mm(W)×8700mm(H)
Motor Power: 250kW
Grinding Ball Installed: ~4T
Quality: ~12T without load, ~22T heavy load
INQUIRY EMAIL

High productivity, high grinding efficiency, low energy consumption.

Process flexible, can be single or groups production, finished fineness,sample feed 325 mesh, grinding to 2000~8000 mesh fineness particle, products can be directly used for paper filling, coating or after drying for coatings, paints, cosmetics, disposable diapers, plastic, PVC, and rubber filler wire and cable.

Grinding media wear small, non-polluting products; refined data low temperature, low viscosity, good fluidity.

Ministry of components inside the mill with high hardness wear-resistant materials, equipment and long service life.

Transmission efficiency, use large spiral bevel gear, bevel gear reducer, the operating efficiency up to 95%, smooth transmission, low noise, no vibration.

Gear box lubricated by pump forced circulation run, external circulating oil cooling and fitering system; cooling oil and filter oil at the same time, to improve oil cleanliness effect and extent the oil and the service life of equipment more conducively.

Easy start-up, motor and gear box adopts flexible shaft coupling, which can effectively protect the gear box to avoid impact injury, small electrical shocks on the grid.

Has a temperature alarm and current alarm system, when the oil temperature, current exceeds the set alarm or shutdown even.
